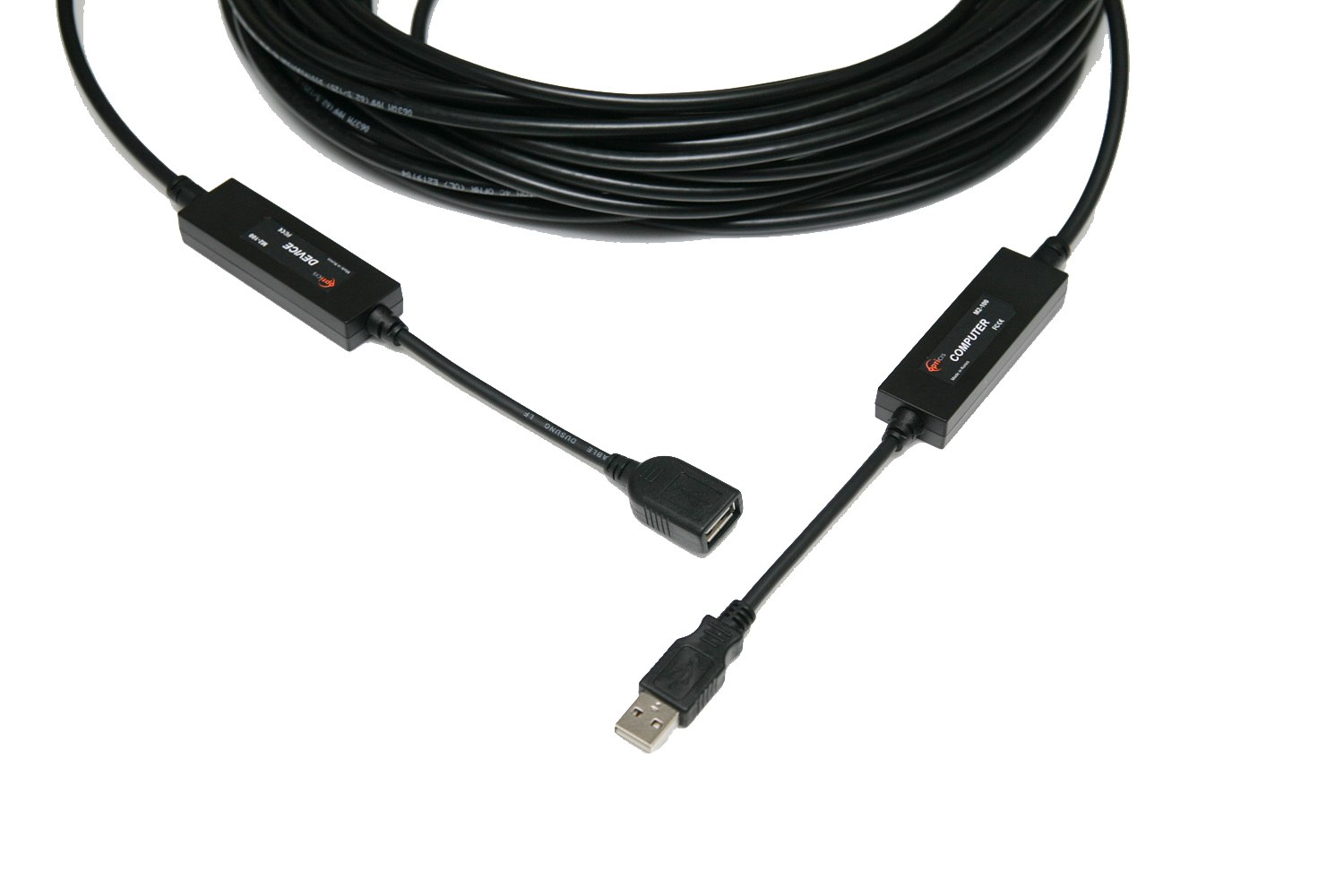

M2-100 Series; USB PURE OPTICAL EXTENSION CABLE
Opticis optical extension cables link the USB signal up to 130feet (40 meters) without any repeater. Opticis optical USB extension cables provide the simplest way to link the USB device far from the host. Owing to the advanced VCSEL and PD, USB protocol could be maintained over such a long-distance connection with cost effective. The modules have a pair of optical-to-electrical and electrical-to-optical converters on each end, connected by fibre-optic cables.
Opticis optical extension cables provide A plug-in to A receptacle (M2-100). In addition, hybrid fibre cables running electrical wire along are used instead only optical cables. This offers convenient extension where there is no AC power supply, adjacent at the end of devices to be supplied to USB devices and Opticis downstream modules.
- Complies with USB1.1 High-speed (12Mbps) standard.
- Extends up to 40m (130 feet).
- Offers perfect electrical galvanic isolation.
- Adopts four (4) strands of multi-mode fiber between two links, not to be interfered magneto electrically.
- No software to install: Plug and Play.
- Uses USB controller power for the uplink and +5V DC power adapter in shipping group for the downlink.
- Supports wide-ranged OS Win7, Win98, XP, 2000, Mac and SUN Solaris (Certified).
- LC fiber detachable type is available as an option.
Available in: M2-110 option available for A plug-in to B plug-in type.
Length Available: 10m, 20m, 30m, 40m
