HUX-2F20-TR

HDMI 2.0 + USB 2.0/1.1 + 1G Ethernet + Audio + RS-232 Optical Extender up to 300m (984ft) over 2 LC Multi-mode fibers - COMING SOON!

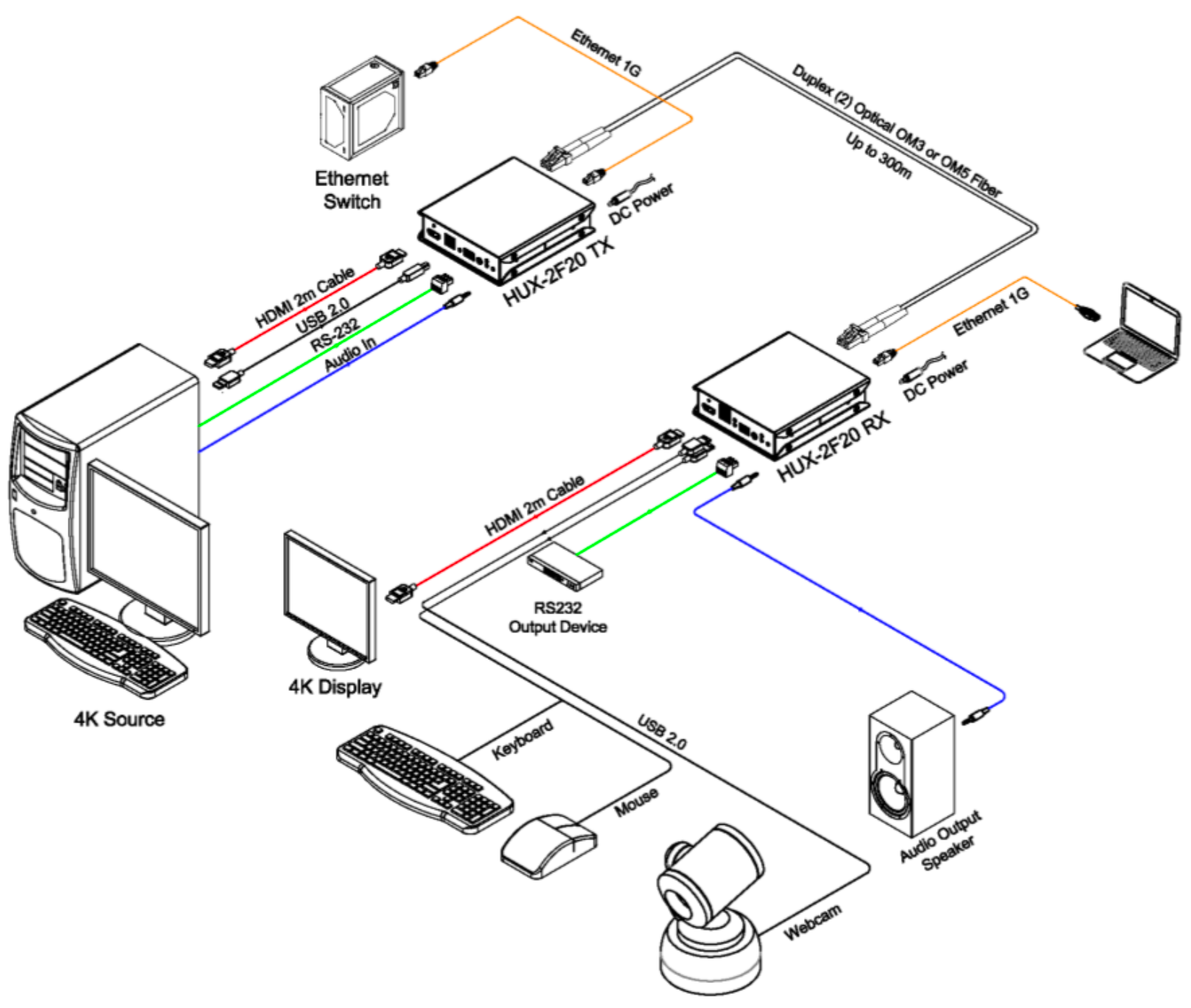

The HUX-2F20-TR is a high-performance all-fiber optical extender engineered to transmit uncompressed HDMI 2.0 4K video, USB 2.0/1.1, 1G Ethernet, audio, and RS-232 signals over long distances via two (2) LC multi-mode fibers.

It delivers stable, uncompressed 4K@60Hz (4096×2160) video up to 300m (984 feet) with zero signal degradation. By supporting both HDMI and USB interfaces, the system enables flexible deployment across a wide range of professional environments while eliminating the distance limitations typical of traditional copper-based connections.

By leveraging fiber-optic transmission, the solution inherently provides galvanic isolation, making it ideally suited for applications in healthcare and industrial automation where electrical safety, EMI immunity, and system stability are critical. This enables safe signal separation and high-quality video and USB connectivity in electrically demanding environments.

The HUX-2F20-TR maximizes convenience and expandability by transmitting not only HDMI 2.0 4K video and USB data, but also 1G Ethernet, audio, and RS-232 signals, enabling versatile deployment in any professional environment.

Features

• Simultaneous transmission of video, audio, USB 2.0/1.1, 1G Ethernet, and RS-232 signals

• Supports uncompressed HDMI 2.0 video up to 4K (4096×2160) @ 60Hz

• Transmits up to 300m (984ft) over two (2) LC multi-mode fibers

• Supports USB 2.0 devices including webcams, memory sticks, and HID devices

• Galvanic isolation for enhanced EMI protection and safety

Markets and Applications

Healthcare & Medical

• Operating room AV systems with surgical cameras and displays

• Medical imaging workstations requiring isolation from electrical interference

• Telemedicine consultation rooms with remote camera and peripheral control

• Patient monitoring systems across different rooms or floors

Industrial Automation & Manufacturing

• Machine vision systems in high-EMI factory environments

• Remote monitoring and control of production equipment

• Quality control inspection stations with 4K imaging

• Process control rooms isolated from manufacturing floor electrical noise

Education & Training

• Distance learning classrooms with interactive displays and USB peripherals

• Lecture capture systems across campus buildings

• Simulation and training centers with remote control capabilities

• Multi-building campus AV distribution networks

Corporate & Enterprise

• Conference rooms and boardrooms with extended cabling requirements

• Command and control centers with multiple display walls

• Data centers requiring KVM extension with video and USB

• Security operations centers with remote camera and device access

Transportation & Infrastructure

• Airport and rail station information displays and control systems

• Traffic management centers with distributed monitoring

• Port and logistics control facilities

• Parking facility management systems

Government & Defense

• Secure communications facilities requiring electrical isolation

• Military command centers with distributed workstations

• Emergency operations centers with mission-critical reliability

• Surveillance and monitoring installations
