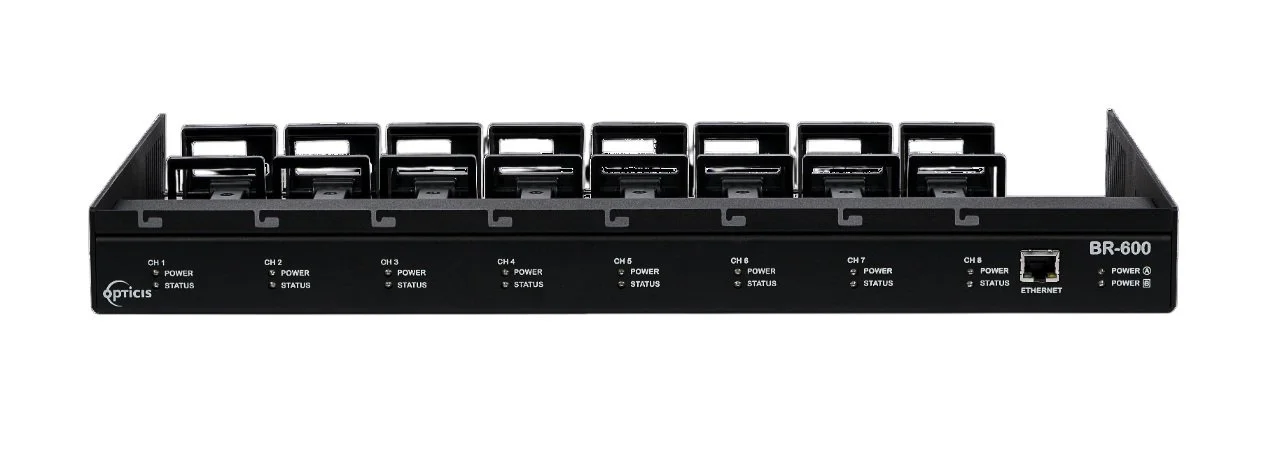

BR-600
19” 1RU Power supply frame with Diagnosis Feature

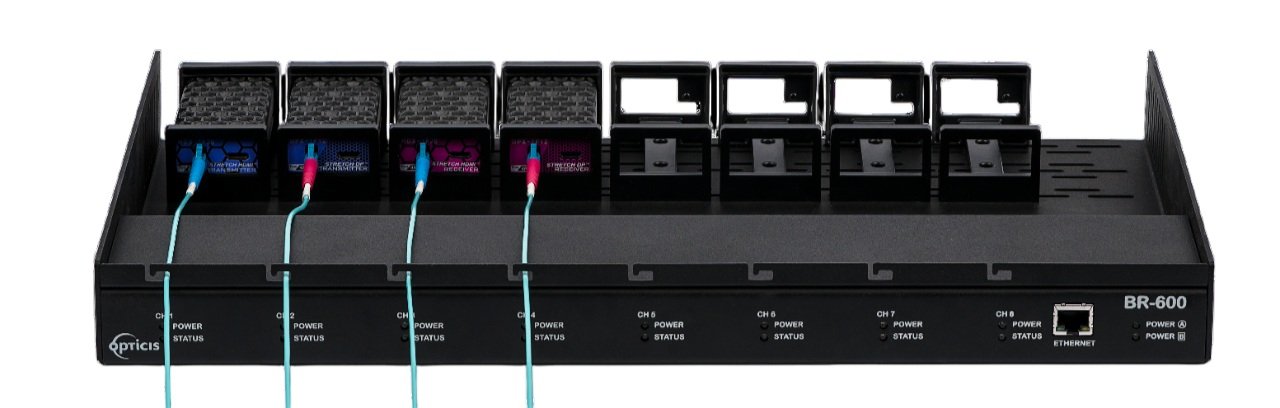

BR-600 is a 19” 1RU Multi-Mounting Rack that offers a modular, high-performance fiber-optic solution supporting up to 8 Opticis optical extenders. It supports Opticis diagnosis extenders - HDX-1F20- TR, DPX-1F12-TR, and DHX-1F4K-TR, ensuring broad compatibility for different extension needs.
The BR-600 has dual DC locking and Phoenix connectors for redundant power supplies, minimizing downtime. Opticis’ Snap Lock system simplifies the secure attachment of extenders.
With its integrated diagnosis feature and GUI support, users can easily monitor power status and manage extenders remotely, ensuring operational stability and control in diverse environments.
Features
USB Host control: F/W for Communication with fiber optic link
Diagnosis Feature
Check/Control the product status via RJ-45 port (GUI or API)
Check/Control the product status via USB C port
Indicator: LCD&LED
Max. Number of Modules: Up to 8 units
Applicable products : HDX-1F20-TR, DPX-1F12-TR, DHX-1F4K-TR
Dimension : 482mm x 240mm x 44mm (LWH)
Supported Products
HDX-1F20-TR - 4K@60 Single Fiber HDMI 2.0 Optical Extender up to 300m (984ft) with Diagnosis Feature and 3m Copper Extension Cables
DHX-1F4K-TR - (Tx Only) 4K Single Fiber DisplayPort 1.2 to HDMI 2.0 Converting Optical Extender up to 300m (984ft) with Diagnosis Feature
DPX-1F12-TR - 4K Single Fiber Optical DisplayPort 1.4 Extender up to 300m (984ft) with Diagnosis Feature
